DG002-35-2M-RE-M8-80A
New
5 Product in stock in our warehouse. Products in stock in our warehouse.
50 + Reserved, if you order now it will be in our warehouse within 3/10 days.
Warning: Last items in stock!
Estimated availability and shipping date:
| Target platform | Battery Cabling & Protection |
| Type | Battery cable |
| Style | Single cable |
| Cable size (diameter) | 35mm² |
| Length characteristics | 2 meter |
| Amperage | 139A |
| Color characteristics | Red |
| First connection (Input) | M8 ring lug |
| Second connection (Output) | M8 ring lug |
| Manufacturing number | DG002-35-2M-RE-M8-80A |
| Characteristics | Ready to use, Double insulated, Megafuse fuse 80A |
| Made in | European Union |
| Certification | Insulation and sheath material: IEC 60811-1-1, Flame propagation: IEC 60332-1-2, Conductor of insulated cable: IEC 60228, Electrical cable spark test: IEC 62230, High-voltage test techniques: IEC 60060-1 |

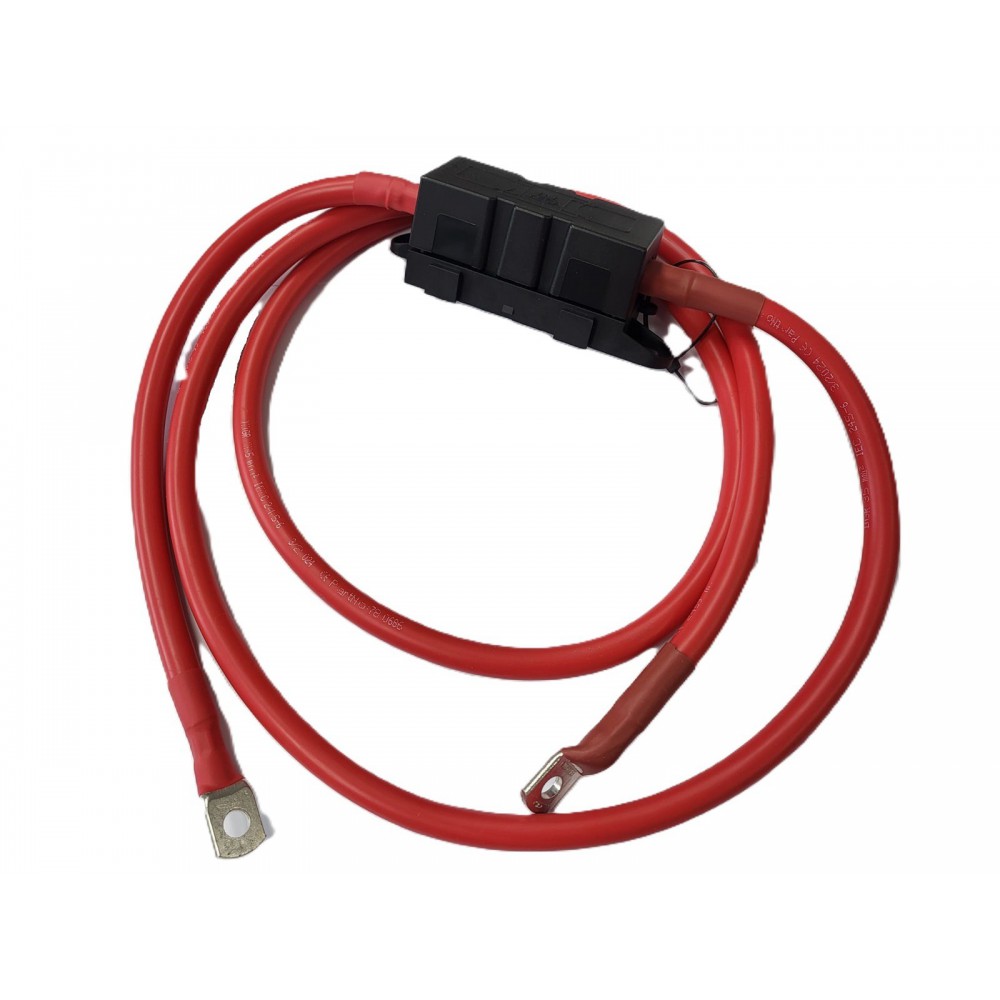

This red cable is 2 meters long and contains a Megafuse fuse holder with a 80A fuse (pre-assembled).
An M8 eye is mounted on both ends so that you can connect it directly to your equipment.
This means that you do not have to crimp cable lug eyes yourself and you can install the cable quickly and easily.
The fuse holder is located 30 cm from one end. The remaining part of the cable is 1.7 meters long and also has an M8 eye.
The fuse can be replaced by yourself with a fuse with a different value, for example 100A.
This 35mm2 cable is also available with M10 cable lug eyes (DG002-35-2M-Red-M10-80A).
For higher currents, we recommend 50mm2 or 70mm2 cable. You can also order these and they are often available from stock.
50mm2: DG002-50-2M-Red-M10-125A
70mm2: DG002-70-2M-Red-M10-200A
A black battery cable of the same length (without fuse holder) is also available under product code: DG002-35-2M-Black-2XM8
Battery cables Red ( + ) and Minus ( - ) between Battery and Converter/Inverter must be of the same length.
EtronixCenter also supplies custom cables and provides them with the correct cable lug eyes so that you can quickly put your installation into use without special tools.
Custom cables are no more expensive than pre-fabricated cables, but delivery may take a little longer. Contact us or send an email if you have special questions. We continue where others stop.
