View larger

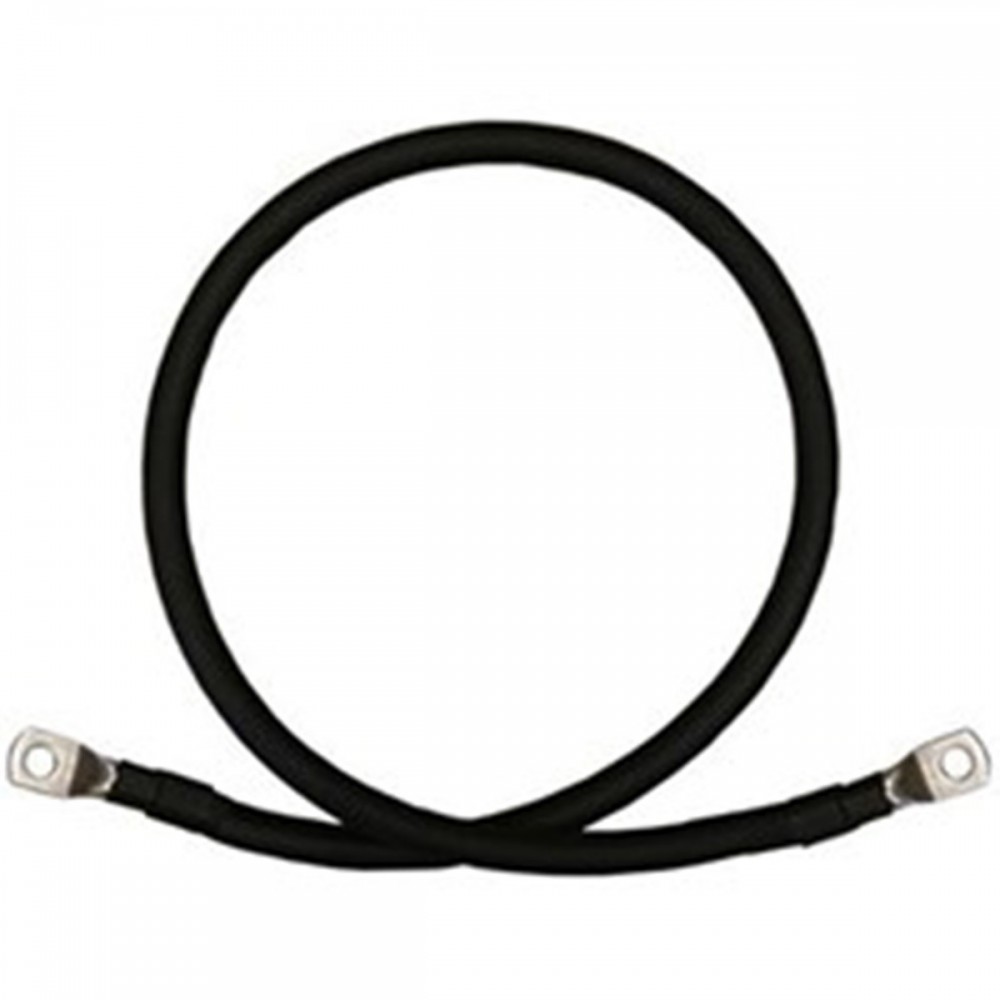

DG002-35-2M-BL-2XM8
New
2 Product in stock in our warehouse. Products in stock in our warehouse.
50 + Reserved, if you order now it will be in our warehouse within 3/10 days.
Warning: Last items in stock!
Estimated availability and shipping date:
| Target platform | Battery Cabling & Protection |
| Type | Battery cable |
| Style | Single cable |
| Cable size (diameter) | 35mm² |
| Length characteristics | 2 meter |
| Amperage | 139A |
| Color characteristics | Black |
| First connection (Input) | M8 ring lug |
| Second connection (Output) | M8 ring lug |
| Manufacturing number | DG002-35-2M-BL-2XM8 |
| Characteristics | Ready to use, Double insulated |
| Made in | European Union |
| Certification | Conductor of insulated cable: IEC 60228, Electrical cable spark test: IEC 62230, Flame propagation: IEC 60332-1-2, High-voltage test techniques: IEC 60060-1, Insulation and sheath material: IEC 60811-1-1 |
Dubbel geïsoleerde batterijkabel, oliebestendig en zeer flexibel
Geleider: Elektrolytisch / Gegloeid koper (Klasse 6)
Isolatie (rond geleider): PVC (Natuurlijk)
Isolatiemantel: NBR PVC (RAL 3000 Rood / RAL 9005 Zwart / RAL 2008 Oranje)
Artikelnummer fabrikant: 3399935/z (r)
Kabeloppervlak: 35 mm
Kabeldiameter: 11,30 mm
Max R (Ω/km): 0,544
Max stroom: 139 A
Kabelgewicht: 376 kg / 1 km kabel
Buigradius: x10 buitendiameter voor vaste installatie
Werkspanning: 0,6 / 1 kV
Testspanning: 3,5 kV
Temperatuurbereik: -40 °C + 70 °C
Vlamverspreiding: IEC 60332-1-2
Normen:
- IEC 60811-1-1 Isolatie- en omhullingsmaterialen, standaardtestmethoden;
- IEC 60228 Geleider van geïsoleerde kabel;
- IEC 62230 Elektrische kabelvonktest;
- IEC 60060-1 Hoogspanningstesttechnieken
Be the first to ask a question about this product!
