View larger

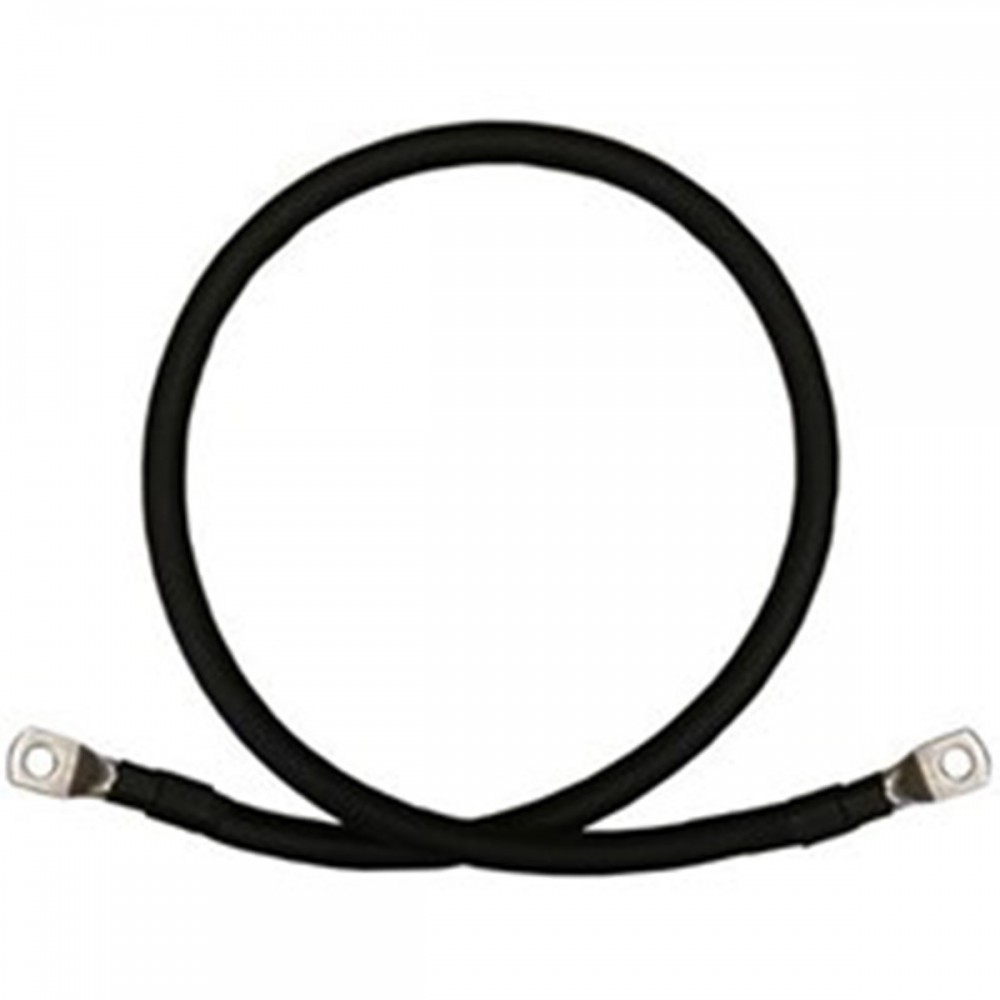

DG002-35-2M-BL-1XM8-1XM10
New
5 Product in stock in our warehouse. Products in stock in our warehouse.
25 + Reserved, if you order now it will be in our warehouse within 3/10 days.
Warning: Last items in stock!
Estimated availability and shipping date:
| Target platform | Battery Cabling & Protection |
| Type | Battery cable |
| Style | Single cable |
| Cable size (diameter) | 35mm² |
| Length characteristics | 2 meter |
| Amperage | 139A |
| Color characteristics | Black |
| First connection (Input) | M8 ring lug |
| Second connection (Output) | M10 ring lug |
| Manufacturing number | DG002-35-2M-BL-1XM8-1XM10 |
| Characteristics | Ready to use, Double insulated |
| Made in | European Union |
| Certification | Conductor of insulated cable: IEC 60228, Electrical cable spark test: IEC 62230, Flame propagation: IEC 60332-1-2, High-voltage test techniques: IEC 60060-1, Insulation and sheath material: IEC 60811-1-1 |
Double-insulated battery cable, oil-resistant and highly flexible
Conductor: Electrolytic / Annealed copper (Class 6)
Insulation (around conductor): PVC (Natural)
Insulating sheath: NBR PVC (RAL 3000 Red / RAL 9005 Black / RAL 2008 Orange)
Manufacturer part number: 3399935/z (r)
Cable area: 35 mm
Cable diameter: 11.30 mm
Maximum R (Ω/km): 0.544
Maximum current: 139 A
Cable weight: 376 kg / 1 km cable
Bending radius: x10 outer diameter for fixed installation
Operating voltage: 0.6 / 1 kV
Test voltage: 3.5 kV
Temperature range: -40°C + 70°C
Flame spread: IEC 60332-1-2
Standards:
- IEC 60811-1-1 Insulating and sheathing materials, standard test methods;
- IEC 60228 Conductor of insulated cable;
- IEC 62230 Electrical cable spark test;
- IEC 60060-1 High-voltage testing techniques
