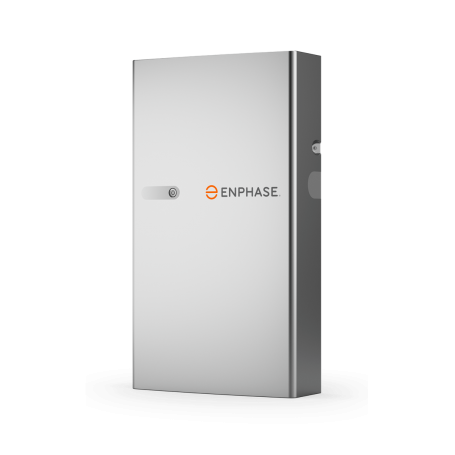

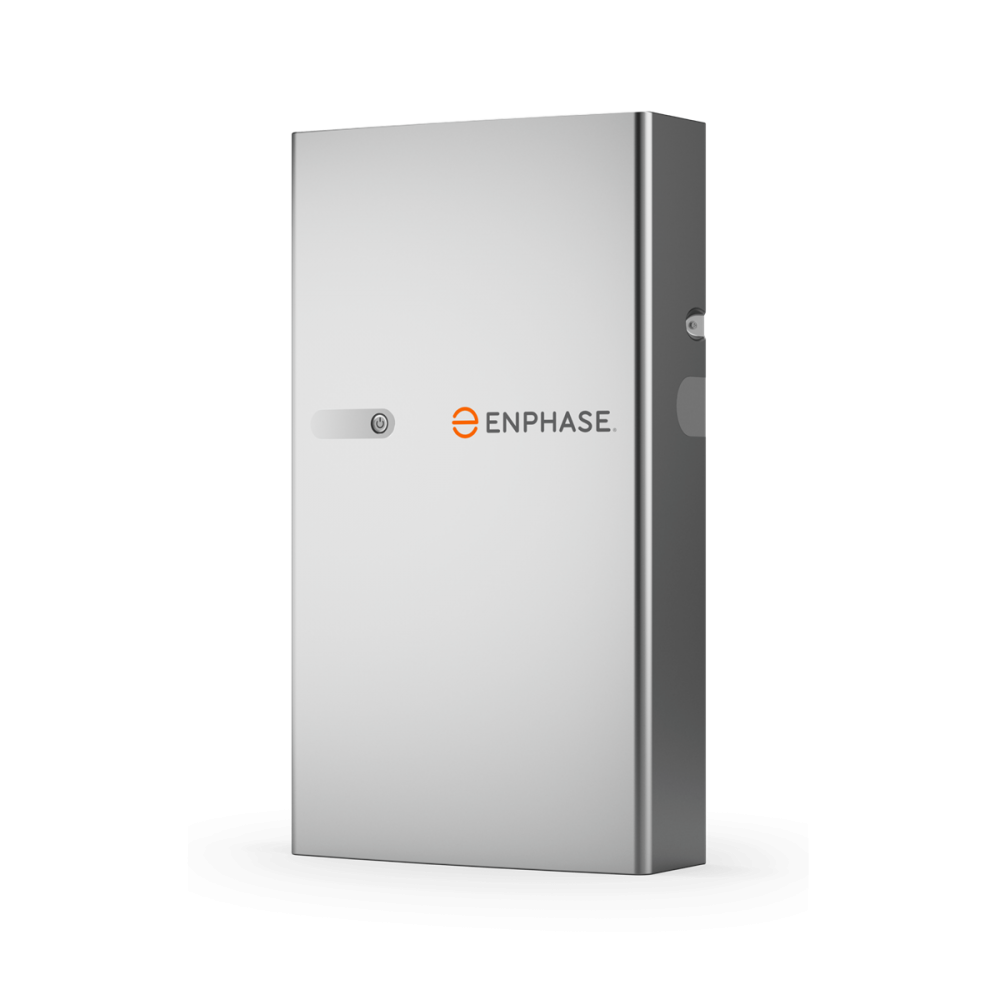

As an all-in-one, AC-coupled storage system, the IQ Battery 5P with FlexPhase is the most versatile and powerful home battery yet.
It can be used for single-phase and three-phase installations, in a grid-tied or backup configuration, allowing you to create the perfect solution for your energy needs.
It has a total usable energy capacity of 5.0 kWh, six built-in grid-forming microinverters and a continuous output of 3.84 kVA.
Overview:
Fully integrated AC battery system
Six integrated IQ8D-BAT Microinverters
Field-replaceable components
Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Cools passively with no moving parts or fans
Uses wired communication for fast, consistent connectivity
Quick and easy plug-and-play installation
Remote software and firmware upgrades
Provides homeowners with remote monitoring and control via the Enphase App
Technical Specifications:
Power: 3.84 kVA
Energy Capacity: 5.0 kWh
DC Round-Trip Efficiency: 96%
AC Round-Trip Efficiency: 90%
Depth 188 mm
Width 550 mm
Height 980 mm
Weight 83 kg
Compatibility:
IQ8 Series Microinverters
IQ7 Series Microinverters
String Inverters
IQ Gateway Metered
Communications Kit 2
IQ System Controller 3 INT
IQ Combiner 2 EU 3P
Package contents:
IQ Battery 5P with FlexPhase base unit
IQ Battery 5P with FlexPhase cover

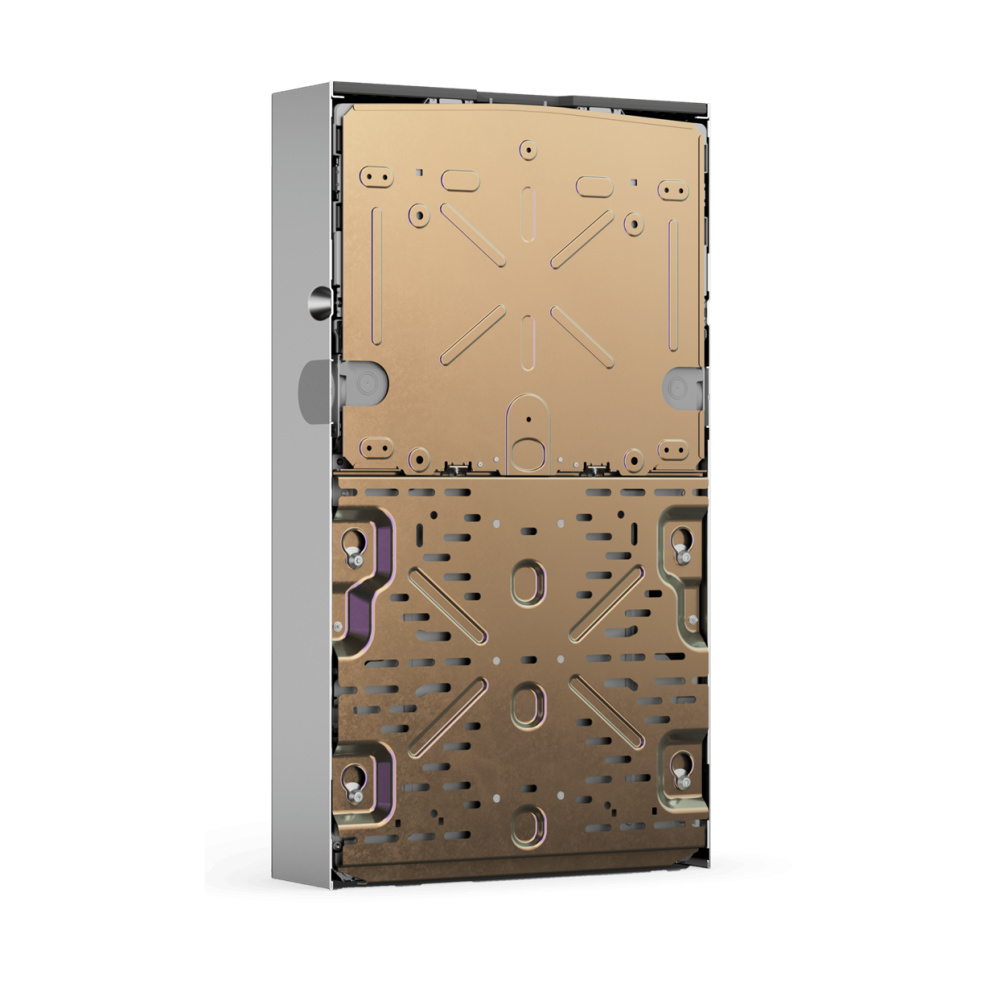

Wall mounting bracket
