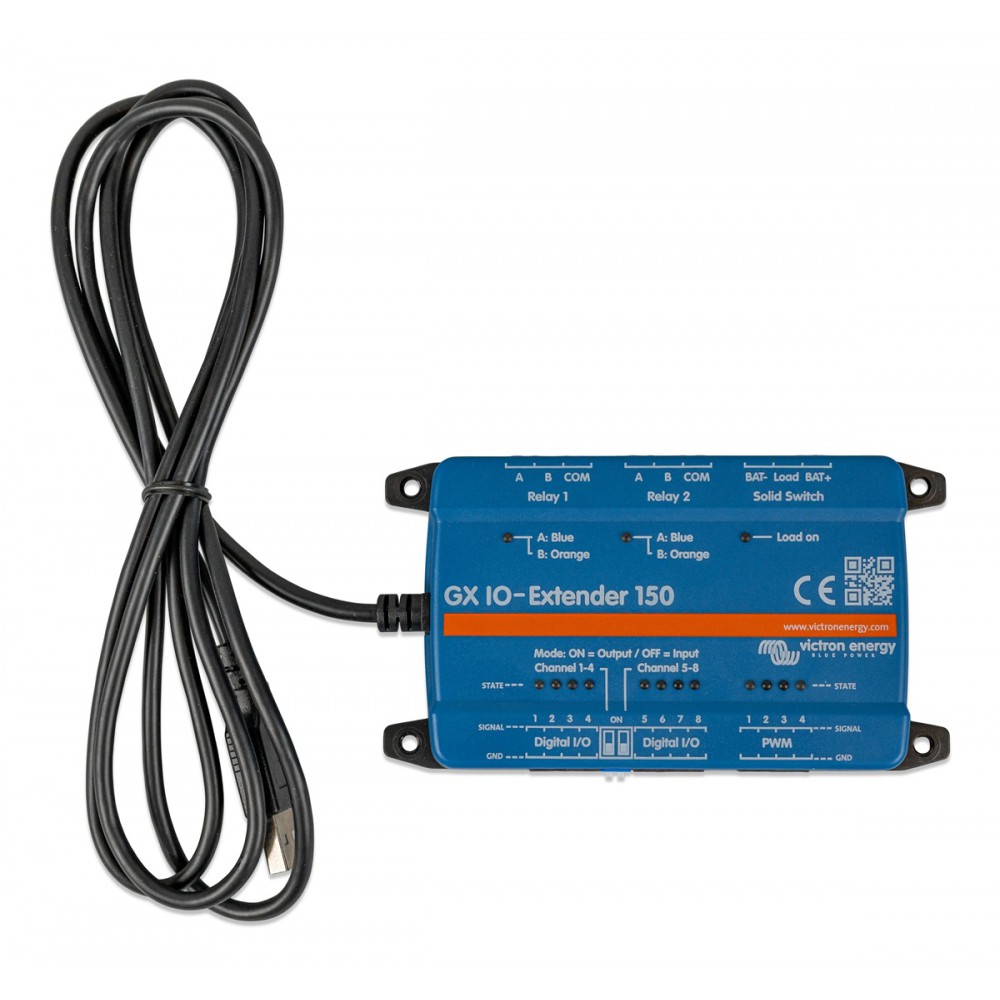

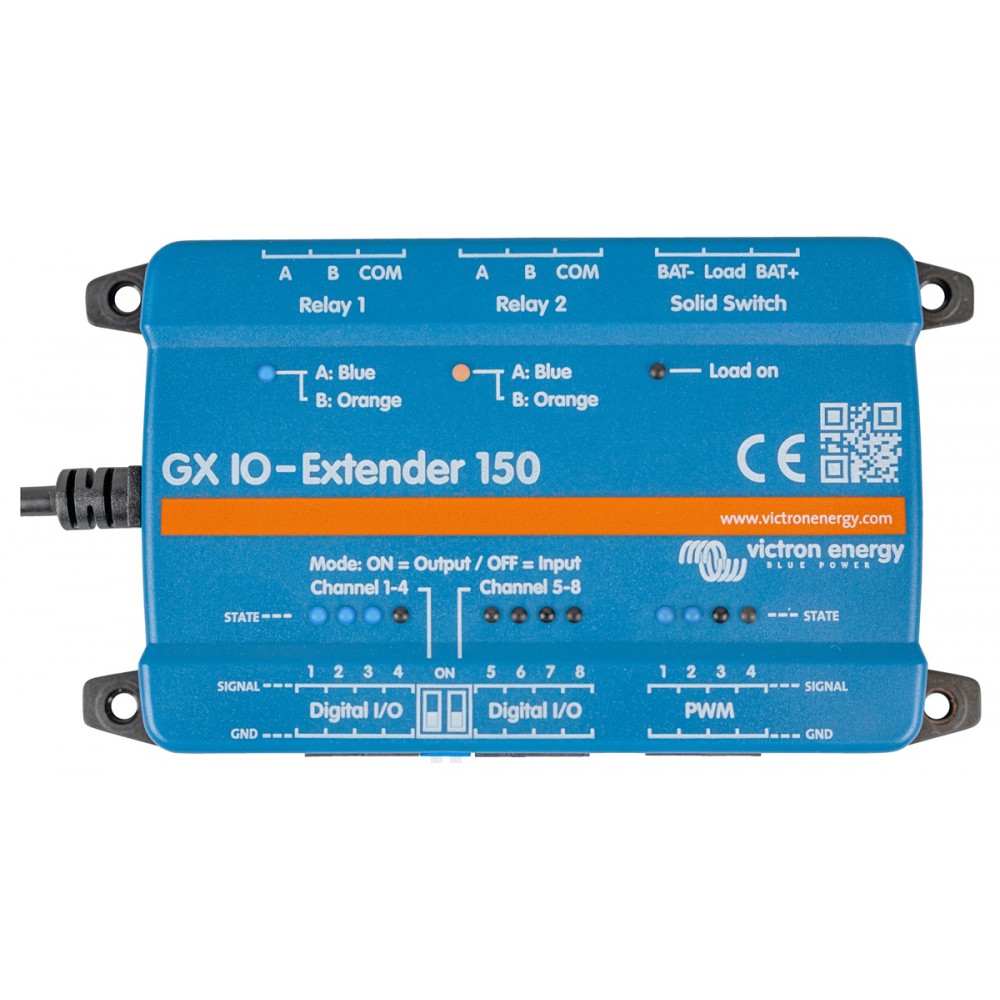

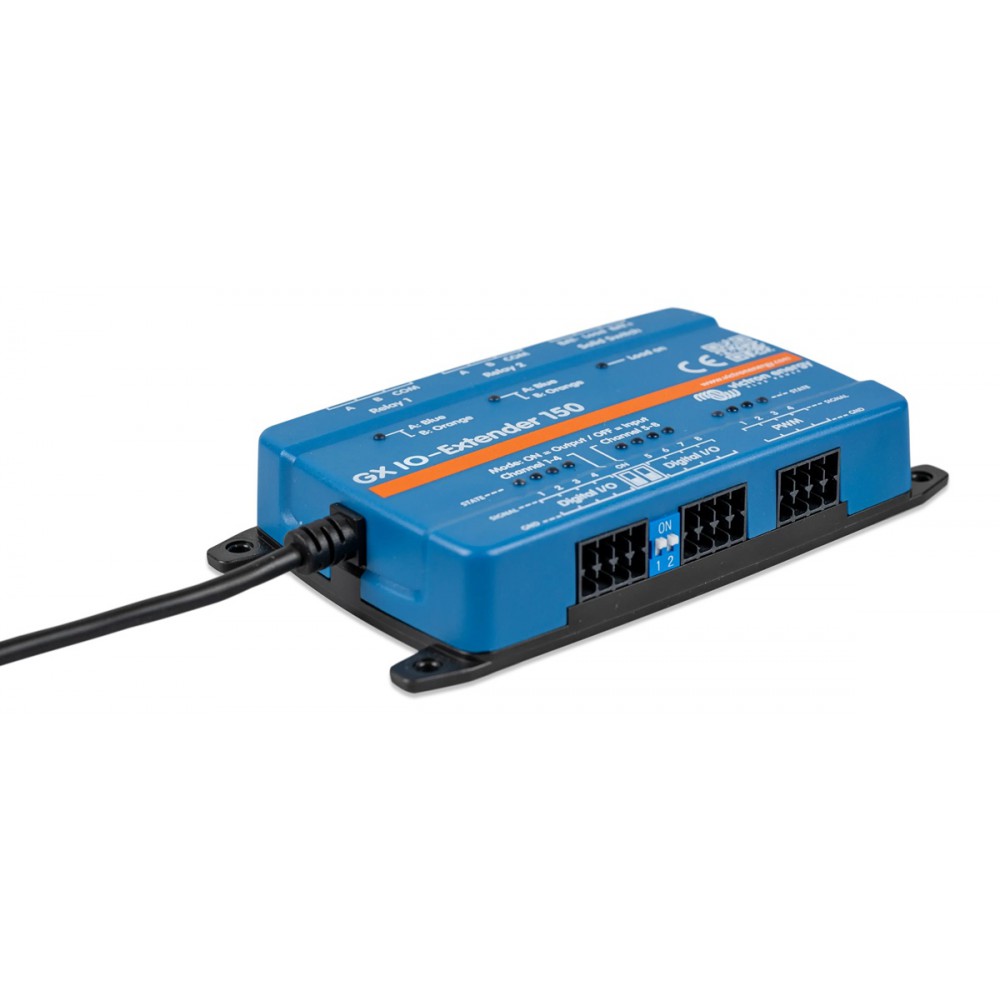

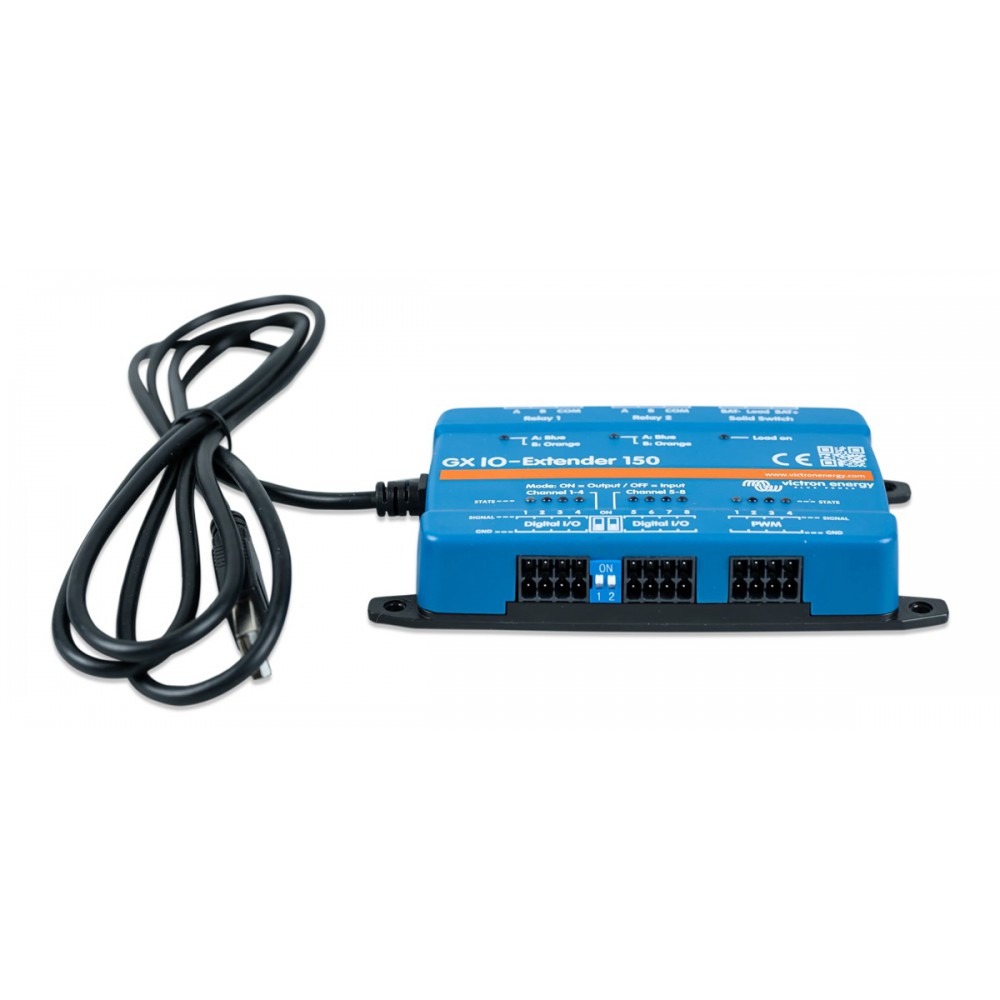

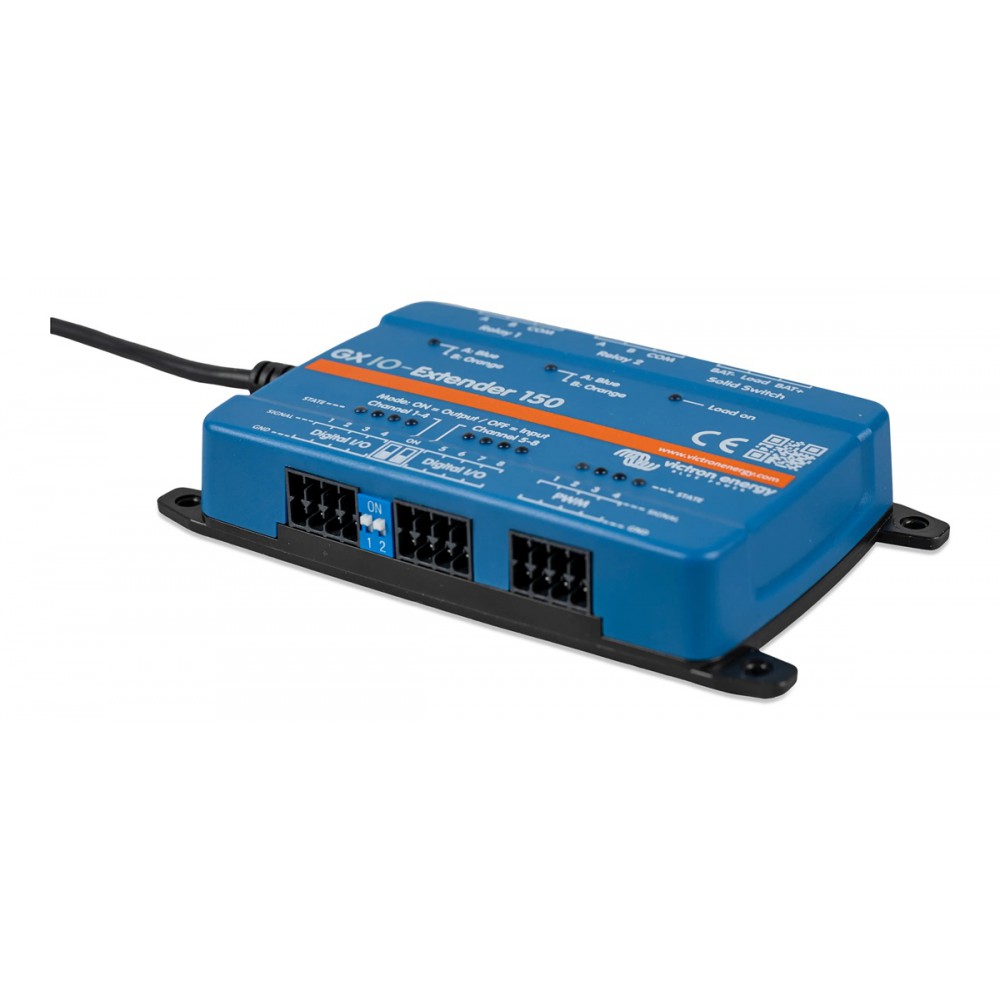

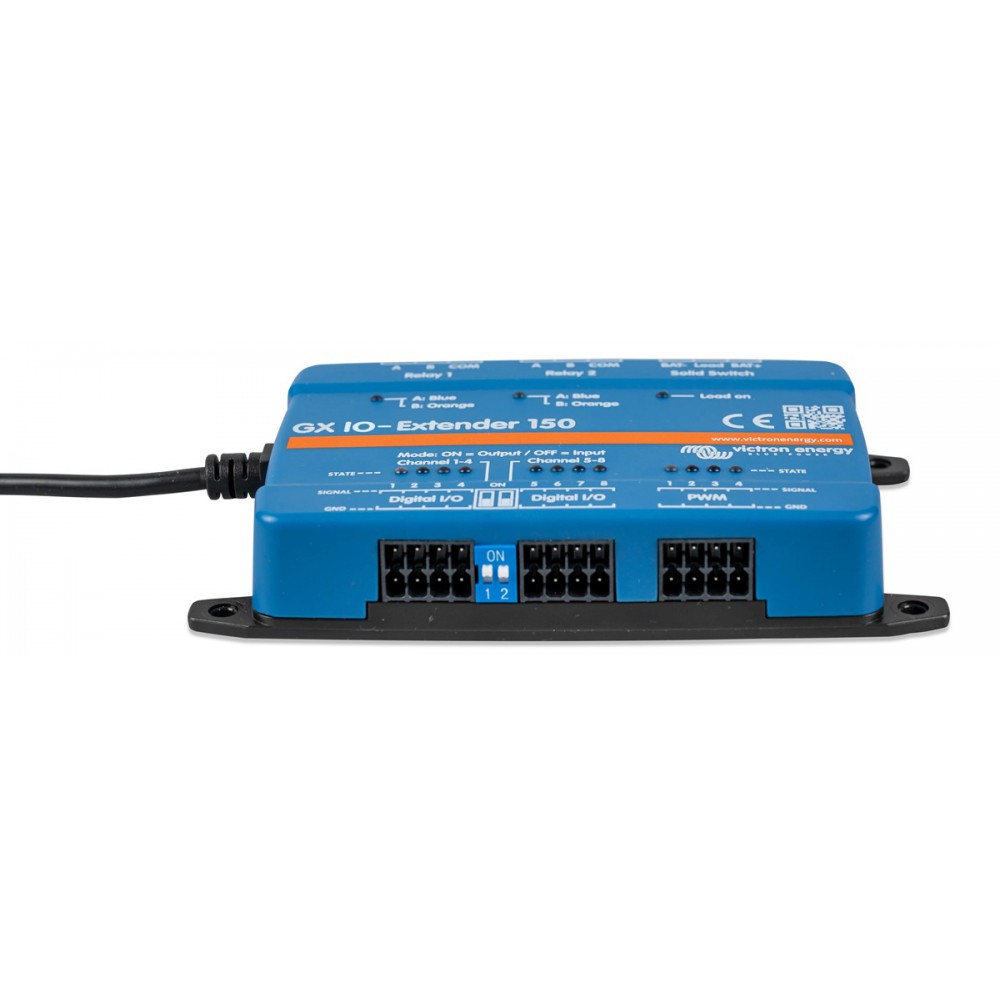

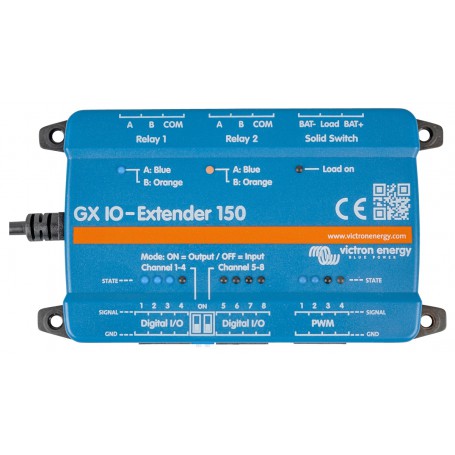

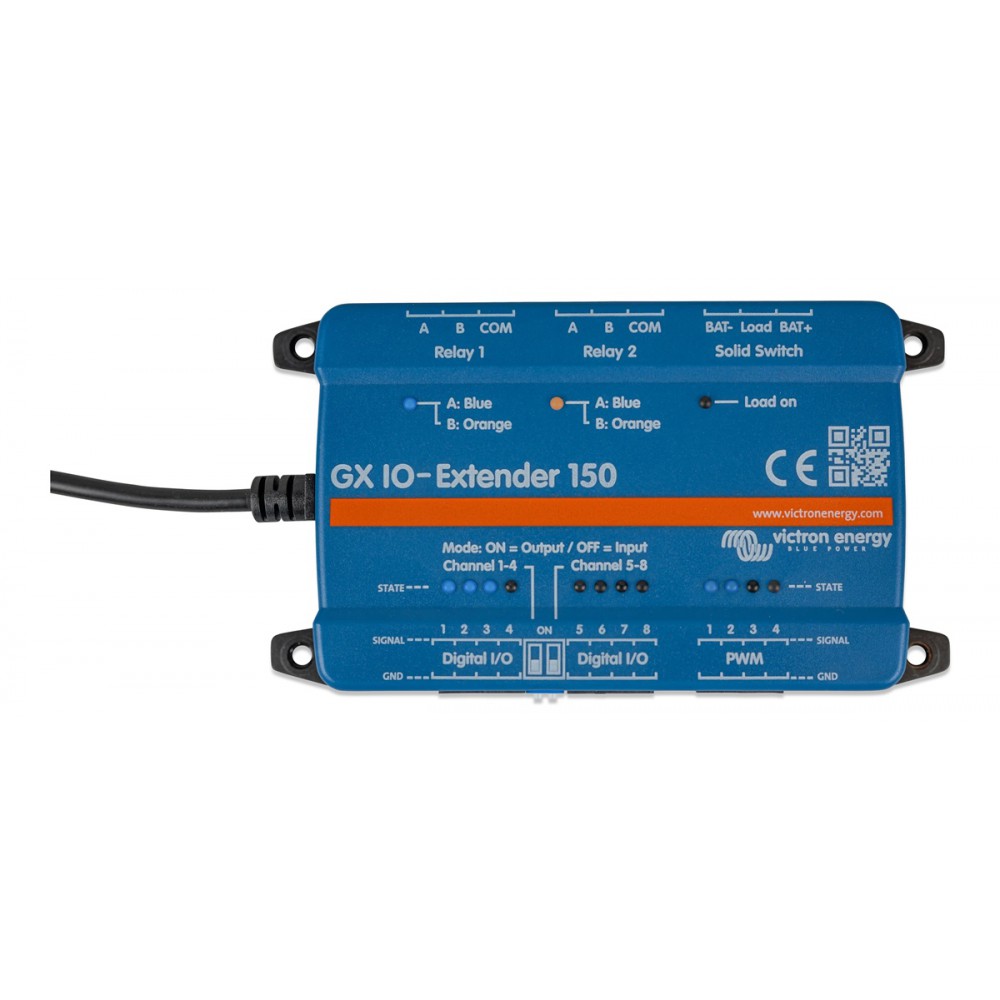

Victron GX IO-Extender 150

SL987

New

2 Products in stock in our warehouse.

25 + Reserved at the manufacturer. If you order from us now, it will be delivered as soon as possible.

€ 103,26

 tax 0% incl.

Download

Datasheet-GX-IO-Extender-150-EN

Download (355.69k)

Data sheet

Manufacturing number BPP900800150

More info

The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.

FEATURES:
8 digital I/Os, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs
PWM output for precise control applications
Two latching relays for low-power switching
A solid-state relay (SSR) for high-speed switching of DC loads that can be resistive, capacitive or inductive (such as the coil of a high-power contactor)
Pluggable spring terminals for fast and secure connections
Configurable via Node-RED for easy automation and custom logic
