Sale! Victron energy, Victron Energy MultiPlus 12/800/35-16, Victron MultiPlus, SL170 View larger

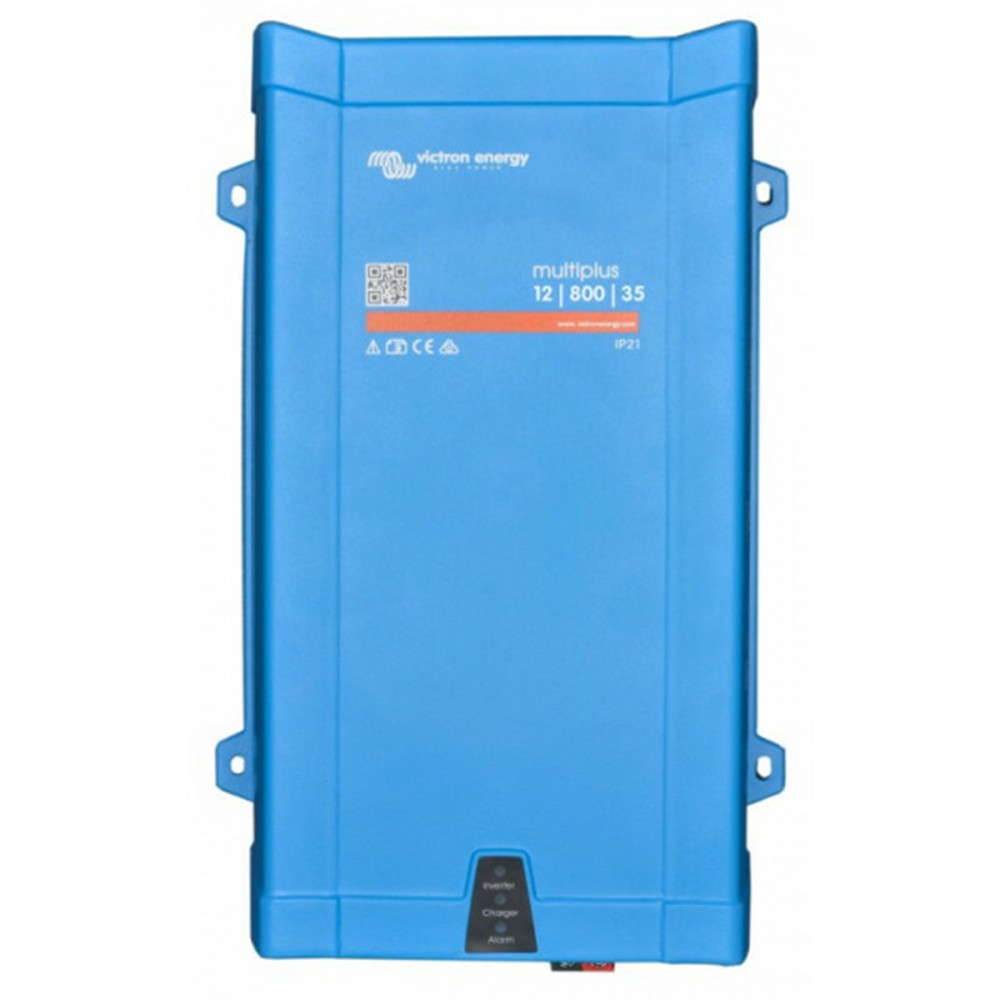

Victron Energy MultiPlus 12/800/35-16

SL170

New

0 Product in stock in our warehouse. / 10+ From the manufacturer on its way to us. Please contact us for the exact delivery time.

€ 395,87

 tax 0% incl.

€ 495,04

-€ 99,17

Download

Data sheet

Manufacturing number PMP121800000

More info

This new style MultiPlus 12/800/35 inverter/charger combination is a powerful pure sine wave inverter, an advanced battery charger with adaptive charging technology and a super fast AC changeover switch in a single compact housing. The new MultiPlus models are easy to recognize due to the elongated steel/plastic housing (protection class IP 21).

MultiPlus 12/800/35 inverter/charger specifications:
Input voltage: 12VDC
Output voltage: 230VAC
Output Power: 800VA / 700W
Peak: 1600W
PowerControl: yes
PowerAssist: yes
Transfer switch: 16A
Charging current house battery: 35A
Charging current starter battery: 1A
Recommended battery capacity: 175 - 350 Ah
Brand: Victron
Model: Multiplus IP21
Number of outputs 1
Height: 360mm
Width: 240mm
Depth:100mm
Weight: 6.50 kg

Battery cable (not included):
The MultiPlus 12/800/35 combines a powerful 800 VA (700 Watt) pure sine wave inverter, an advanced battery charger with 35 amp adaptive charging technology, and a super-fast AC changeover switch in a single compact housing. This MultiPlus is supplied without the required 25mm² cables.

This newest member of the MultiPlus family is equipped with PowerControl and PowerAssist functionality. All models are suitable for 3-phase and parallel switching, and have a maximum forward current of 16A. Victron Energy's inverter/chargers are designed for professional use. They are suitable for a variety of devices with high and low starting powers. The MultiPlus is a multifunctional energy system with sine wave inverter, battery charger and AC switch. The batteries are safely charged, even when the quality of the power supply is low.

Proven reliability
The full bridge plus toroidal transformer topology has proven itself very reliable for many years. The inverter is short-circuit proof and protects against overheating, whether due to overload or high ambient temperature.

PowerControl - Maximum utilization of limited aggregate, shore or grid power
A maximum aggregate or shore power can be set with the Digital Multi Control control panel. The MultiPlus then takes other power consumers into account and only uses the power that is 'left' for charging, so that the generator or shore connection is not overloaded.


PowerAssist – Do more with your generator or shore power
Where peak power is often only needed for a short time, the MultiPlus ensures that insufficient shore or aggregate power is immediately compensated with power from the battery. When the load decreases, the reserve current is used to recharge the battery.

High start-up power
Required to start loads with high inrush current, such as voltage converters for LED lamps, halogen lamps or power tools.

Search Mode
When the 'search mode' is enabled, the inverter power consumption at no load is reduced by approx. 70%. The 'search mode' means that the Multi is switched off when there is no load or when it is very low. The Multi will switch on briefly every 2 seconds. If the output current exceeds a set level, the inverter continues to operate. If not, the inverter switches off again.

Programmable Relay
The programmable relay is set as alarm relay by default, ie the relay is de-energized in case of an alarm or a pre-alarm (inverter almost too hot, input ripple voltage almost too high, battery voltage almost too low).

Remote monitoring and control - optional
Monitor and control your MultiPlus system locally (LAN) or remotely via the internet from around the world with the free VRM app and the free VRM portal website. Access is possible for multiple operating systems via a telephone, tablet, laptop or PC. The level of control from customizing the MultiPlus to setting up a rental vehicle Geofence and more is endless. This requires a control device from the GX family.
