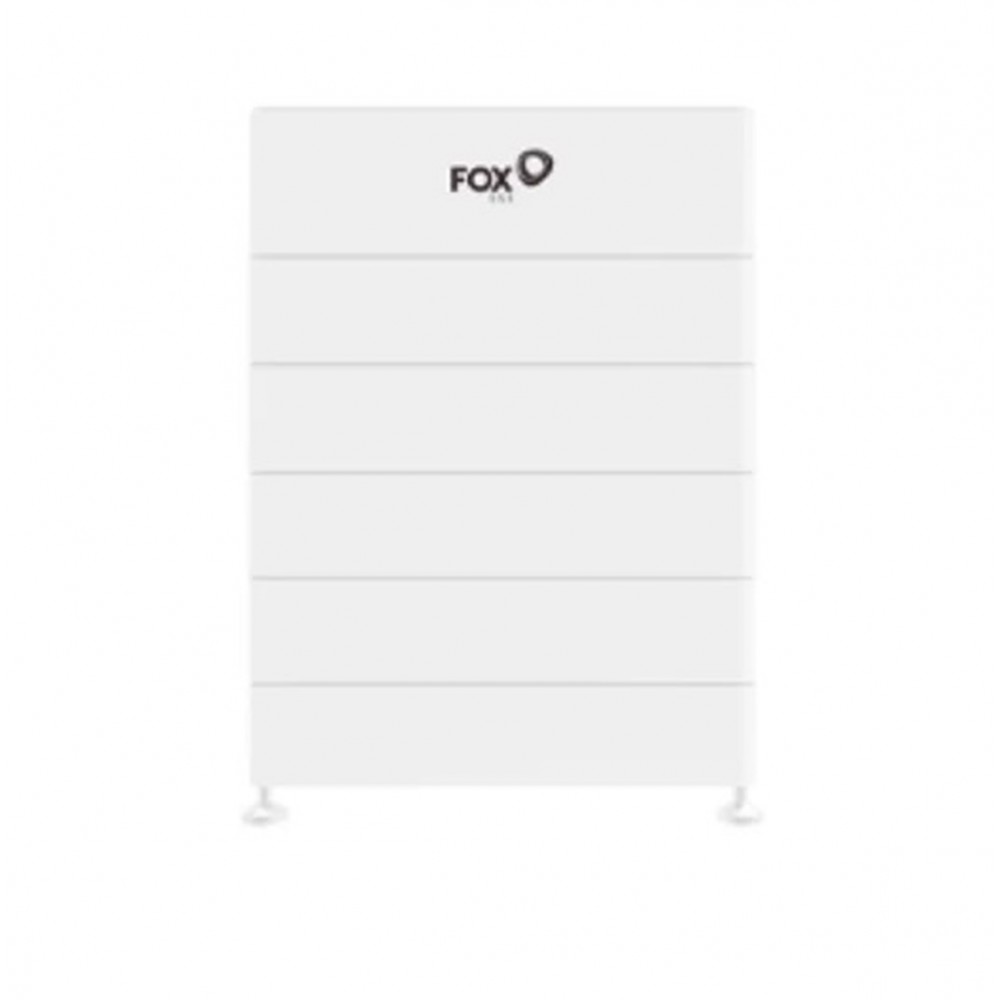

FOX Cube HV 52V ECS4100 8.6-28.21kWh Energy Storage System

FOX ECS is a powerful, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a wide variety of storage applications. Additional batteries can be installed in series, allowing a maximum storage capacity of 28.21 kWh to be achieved. Installation is simple, with a plug-and-play solution that can save installers valuable time.
Scalable up to 28.21 kWh
90% depth of discharge
Large temperature range
Easy installation
CAN/RS485 communication
High voltage

Model: ECS4100-H2 - 1*CM4100 + 1*CS4100 - 8.06kWh
Model: ECS4100-H3 - 1*CM4100 + 2*CS4100 - 12.09kWh
Model: ECS4100-H4 - 1*CM4100 + 3*CS4100 - 16.12kWh
Model: ECS4100-H5 - 1*CM4100 + 4*CS4100 - 20.15kWh
Model: ECS4100-H6 - 1*CM4100 + 5*CS4100 - 24.18kWh
Model: ECS4100-H7 - 1*CM4100 + 5*CS4100 - 28.21kWh

ECM 4.03kWh HV Battery (MASTER)
Manufacturer Product Number: Energy Cube CM4100
Weight: 38.3 kg
Battery Type: Lithium Ion
Nominal Energy: 4050 Wh
Depth of discharge: 90.00 %
Voltage: 52V
Continuous Discharge Rate (Normal Use): 2875W
Maximum Discharge Rate (5 Minutes): 2875W
Surge Discharge Rate (15 Seconds): 2875W
Maximum Charge Rate (5 Minutes): 2875 W

ECS 4.03kWh HV Battery (SLAVE)
Manufacturer Product Number: Energy Cube CS4100
Weight: 38.3 kg
Battery Type: Lithium Ion
Nominal Energy: 4050 Wh
Depth of discharge: 90.00 %
Voltage: 52V
Continuous Discharge Rate (Normal Use): 2875W
Maximum Discharge Rate (5 Minutes): 2875W
Surge Discharge Rate (15 Seconds): 2875W
Maximum Charge Rate (5 Minutes): 2875 W
