More info
This package consists of the following products:
4 x PYL-L2-BATT Force-L2 Li-Ion Battery 3.55kWh FL4874M
1 x PYL-L2-BMU-BASE - Force-L2 BMU with base FC0048M-100

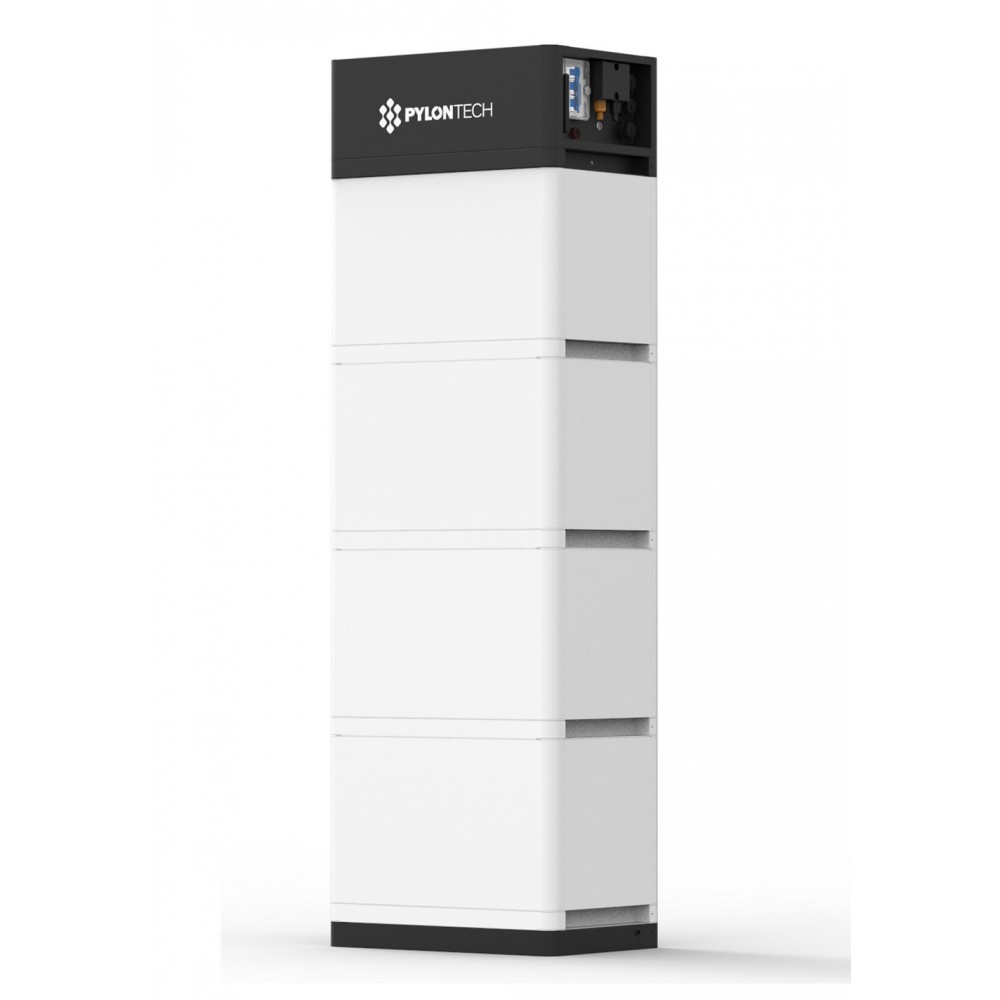

This product package consists of 4x Force-L2 battery modules with each 3.55kWh power plus 1x Force-L2 base with BMU.
BENEFITS
Modular design from 7.0 to 14.21 kWh allows fast and safe installation without open cabling and connections.
LFP technology offers long cell life and high safety
Suitable for indoor and outdoor installation
Proven BMS with wide inverter compatibility
Lithium Ion - safe and long life
BMS with protection functions such as over discharge, overload, over current and high/low temperature
Operating temperature range from -10 to 50℃, (charging 0-50°C; discharging from 10-50℃) with excellent discharge performance and cycle life
Small size, light weight and stackable connection allows for easy installation and maintenance
10 year warranty
Take the opportunity and extend the manufacturer's warranty for 3 to 10 years for free.
All you need to do is register your Pylontech for free.
Weight: 169.5 kg
Battery Type: Lithium Ion
Nominal Energy: 14210 Wh
Depth of discharge: 90.00 %
Voltage: 48V
Continuous Discharge Rate (Normal Use): 4800 W
Maximum Discharge Rate (5 Minutes): 4800 W
Surge Discharge Rate (15 Seconds): 5040 W
Maximum Charge Rate (5 Minutes): 4800 W
