Sale! PYLONTECH, SALE - PYLONTECH US2000C 48V 2.4 kWh Lithium Solar storage battery, Solar Batteries, US2000C View larger
Previous Next

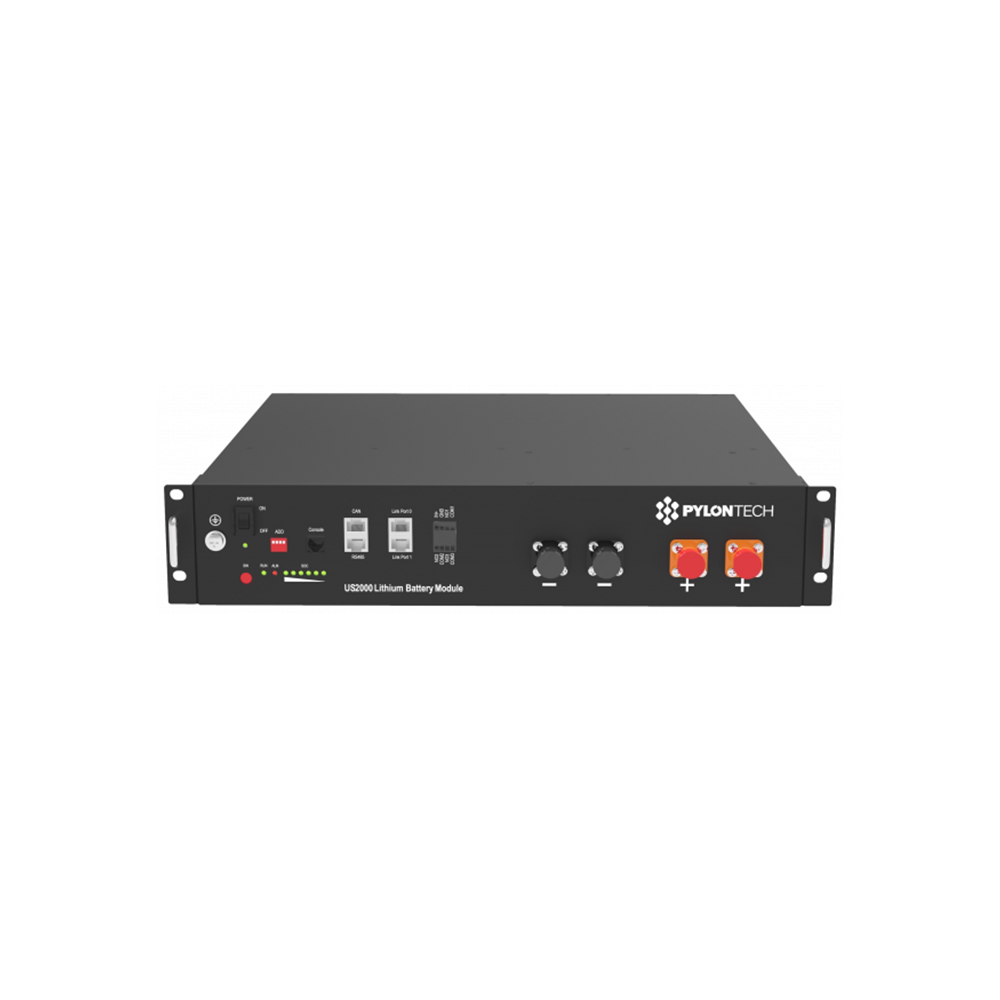

SALE - PYLONTECH US2000C 48V 2.4 kWh Lithium Solar storage battery

US2000C

New


4 Products in stock in our warehouse. / 95+ More stock available from other warehouse. Please contact us for the exact delivery time.

€ 749,00

 tax 0% incl.

€ 799,00

-€ 50,00

Download

PYLONTECH US2000

Download (2.35M)

Warranty Pylontech US Series

Warranty Pylontech US Series

Download (403.4k)

US2000C Operation Manual

US2000C Operation Manual

Download (2.08M)

Product Compatibility US2000C

Product Compatibility US2000C

Download (152.5k)

Data sheet

Made in China
Manufacturing number PYLON-US2000C

More info

US2000 PYLONTECH Lithium battery

The new US2000 Lithium battery series is a perfect solution for residential storage facilities, with STANDARD 48v/50AH specification, up to 90% usable capacity.

Features:
Vertical industry integration guarantees more than 6000 cycles with 90% DoD
Sleek, compact design fits your home environment
Provides up to 5KW with a single 2.4 KWh module
Modular design gives end-customers the ability to choose capacity
Compatible with most of the hybrid inverters available.
Easy fastening of the buckle that minimizes installation time and cost

Specification
Unit name: US2000
Nominal voltage: 48V
Rated capacity WH: 2400
Capacity usable power (Wh): 2200
Physical dimension (mm): 440 * 410 * 89
Weight (Kg): 24
Discharge Voltage (V): 45 ~ 54
Charging Voltage (V): 52.5 ~ 54
Maximum discharge current (A): 5kW @ 15s
Maximum charging current (A): 5kW @ 15s
Communication: RS232, RS485, CAN
Load temperature: 0 ℃ ~ 50 ℃
Discharge temperature: -10 ℃ ~ 50 ℃
Shelf temperature: -20 ℃ ~ 60 ℃
Process title: TüV /CE/UN 38.3
Life cycle: 4500 (90% DoD)

  • Reviews (0)

    • Wees de eerste om een recensie te schrijven !

    Also Bought Products

    30 other products in the same category

    Questions

    Question

    EN: Would the US2000C work with 2 existing US2000 (old models, not C); if so should the US2000C be made the master?

    NL: Zou de US2000C werken met 2 bestaande US2000 (oude modellen, niet C); zo ja, moet de US2000C de master worden?

    Answer

    EN: Exactly! All US2000 old and new models are compatible with each other. Very important thing is the sequence of the batteries. From old to new version. First (bellow) in the line is the old version and you can build it up with new versions.

    NL: Precies! Alle oude en nieuwe modellen van de US2000 zijn compatibel met elkaar. Heel belangrijk is de volgorde van de batterijen. Van oude naar nieuwe versie. Eerst (onder) de oude versie en die kun je opbouwen met nieuwe versies.

    Question

    Deze units worden gekoppeld met kabels, hoe vind ik die?

    Answer

    NL: Om meerdere batterijen aan elkaar te koppelen zijn al kabels in ieder accu set inbegrepen.

    Langere kabels van de accu naar de omvormer hebben wij ook. Click hier voor deze kabel set. >> PYLONTECH US2000/ US3000 / US5000 kabelpakket zonnebatterijen.

    EN: To connect multiple batteries together, cables are already included in every battery set.

    We also have longer cables from the battery to the inverter. Click here for this cable set. >> PYLONTECH US2000/ US3000 / US5000 Cable Pack Solar Batteries
