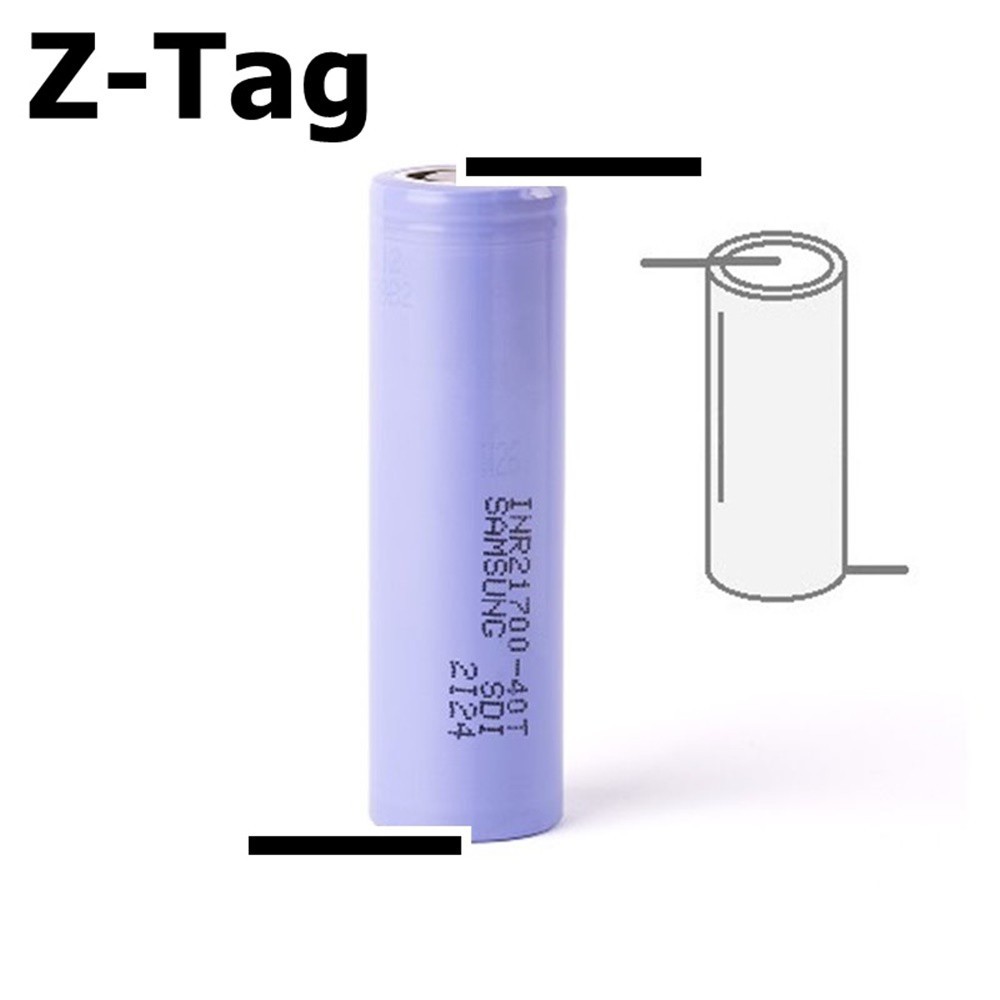

Samsung INR21700-40T 3900mAh - 35A

Reference:

Condition: New

363 Product in stock in our warehouse. Products in stock in our warehouse.

Subscribe To When In Stock

You have successfully subscribed to this product

€ 3,93

tax 0% incl.

As low as € 3,93

Type

Flat Top
U-Soldering
Z-soldering

Quantity

Klantbeoordelingen

Niemand heeft een review geplaatst

Beoordeel het

Shipping cost (United States)

FedEx Premium Pack: € 25,90

Arrival between 2-3 days. Premium service, packing and tracking

No queries yet, leave the first!

Download

INR21700-40T Datasheet

Download (1.31M)

Data sheet

Type	Rechargeable
Style	21700
Target platform	Lithium batteries
Compositions	Lithium
Amperage	35A
Voltage	3.6V
Capacity	3900mAh
Characteristics	Unprotected
Warranty	3 months
Made in	China
Manufacturing number	INR21700-40T

More info

Battery Brand: Samsung
Rated typical capacity: 4000mAh
Battery nominal minimum capacity: 3900mAh
Voltage: 3.6V
Standard charge: CCCV, 2A, 4.20V, 200mA cut-off
Rated charge: CCCV, 6A, 4.20V, 100mA cut-off
Max. continuous discharge: 35A with temperature cut.
Max. continuous discharge: 45A with 80°C temperature cut.
Discharge cut-off voltage: 2.5V
Cycle life: 250 cycles to 60% at 6A charge and 35A discharge.
Battery chemistry composition: Li-Ion
Protection circuit: NO
Battery type: Rechargeable
Battery Style: 21700
Battery diameter: 21mm
Battery height: 70mm

Note!

Do not charge above 4.2V!
Do not discharge below 3V.
Do not burn;
Do not disassemble;
Do not make short positive and negative contacts;
Do not expose to heat;
Do not completely discharge the battery;
Do not use force to install a Li-ion battery;
Use only high-quality battery chargers;
Fully charge before the first use;
Make sure they do not come into contact with water!
Store at approximately the nominal voltage in a cold and dry place
