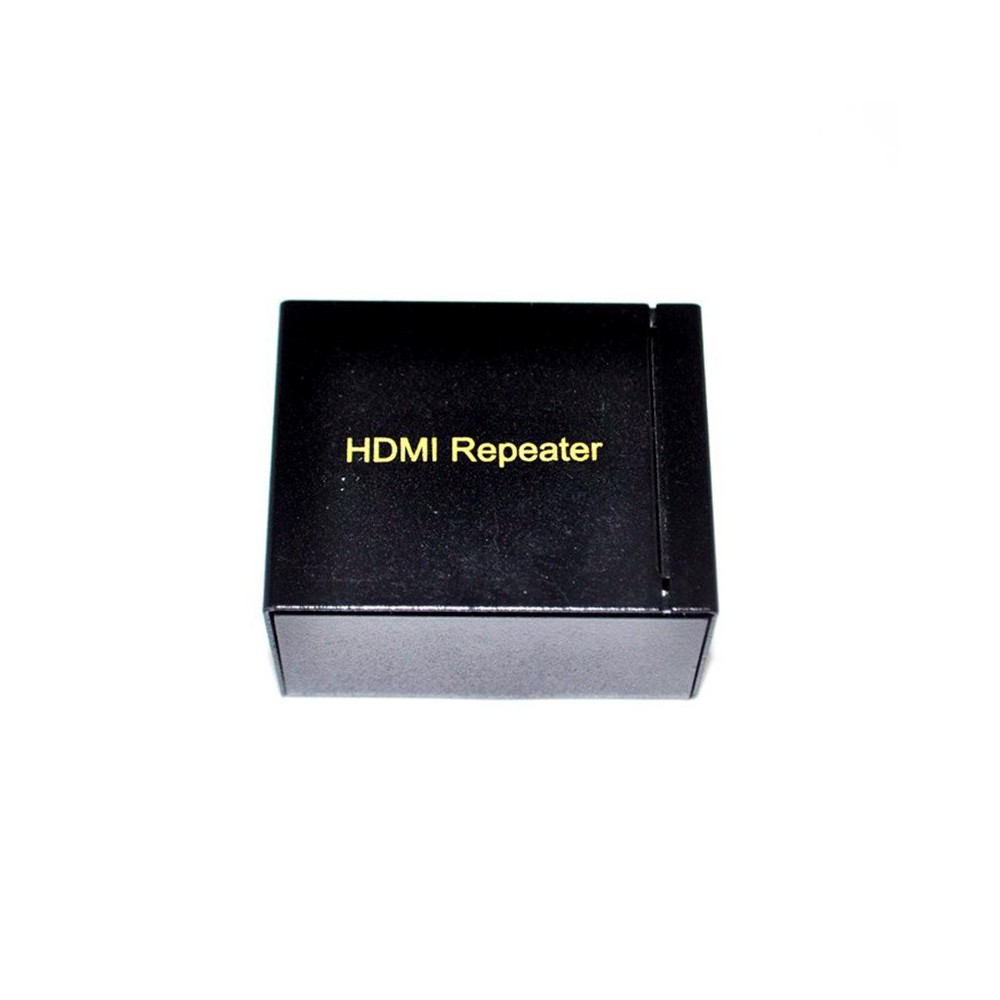

HDMI Signal Amplifier Repeater Booster Adapter Connector for 1080P Xbox 360 DVD Monitor Extension PS3

AL1008

New


14 Products in stock in our warehouse.

€ 16,49

 tax 0% incl.

Data sheet

Type HDMI extender
Style Female to Female
Target platform HDMI extenders
As a replacement for Does not apply
Compositions Metal
Amperage Does not apply
Voltage Does not apply
Wattage Does not apply
Characteristics Tot 40 meter
Color characteristics Black
Length characteristics Does not apply
First connection (Input) HDMI female
Second connection (Output) HDMI female
HDMI version v1.3
Warranty 2 years
Made in China
Pin outside diameter Standard HDMI dimensions
Pin inside diameter Standard HDMI dimensions
Pin length Standard HDMI dimensions

More info

Description:

  • • This is a kind of upgraded HDMI repeater. It extends the length of HDMI cable up to 35M by regenerating the HDMI signal before it sends the outputs to the HDMI monitor or projector
  • • Meanwhile, according to the length of HDMI cable the special designed EQ can be adjusted to reach the best transmission function
  • • This HDMI repeater adopts the iron shell for better EMI elimination and it will clean out the digital noise (sparkles) in your picture
  • • This repeater compatible well with HD-DVD, SKY-STB, PS3, Xbox 360 etc. It offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
  • Supports video resolution 1080p
  • Supports 3.4Gbs data rate
  • Supports 48bit deep color
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby TRUE HD)
  • Support different length of HDMI cable between 0m to 40m
  • Support 3D all format
  • HDCP pass-through
  • Iron shell for better EMI elimination
  • Unique designed structure for better connection

Specification:

  • Input Video Signal: 5 Volts p-p (TTL)
  • Maximum Single Link Range: 1920x1080P
  • Output Video: HDMI1.3b + HDCP1.0 / 1.1
  • HDMI Input / Output Connector: Type A 19 pin
  • Vertical Frequency Range: 50 / 60Hz
  • Video Amplifier Bandwidth: 2.25Gbps / 225MHz
  • Interlaced (50 & 60Hz): 480i, 576i, 1080i
  • Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p
  • Weight: 78g
  • Size (H-W-D): 50X40X35MM
  • Power consumption (Max): 3w
  • Operating Temperature: 0 ° C to + 70 ° C
  • Operating Humidity: 10% to 85% RH (no condensation)
  • Storage Temperature: -10 ° C to + 80 ° C
  • Storage Humidity: 5% to 90% RH (no condensation)
  • Converter Unit: FCC, CE, UL
  • Power Supply: UL, CE, FCC

Package Content:

  • 1 X HDMI Repeater Box Extender Amplifier Booster Adapter
  • 1X Power Adapter
